Equipment composition: main equipment, auxiliary equipment and electronic control equipment.

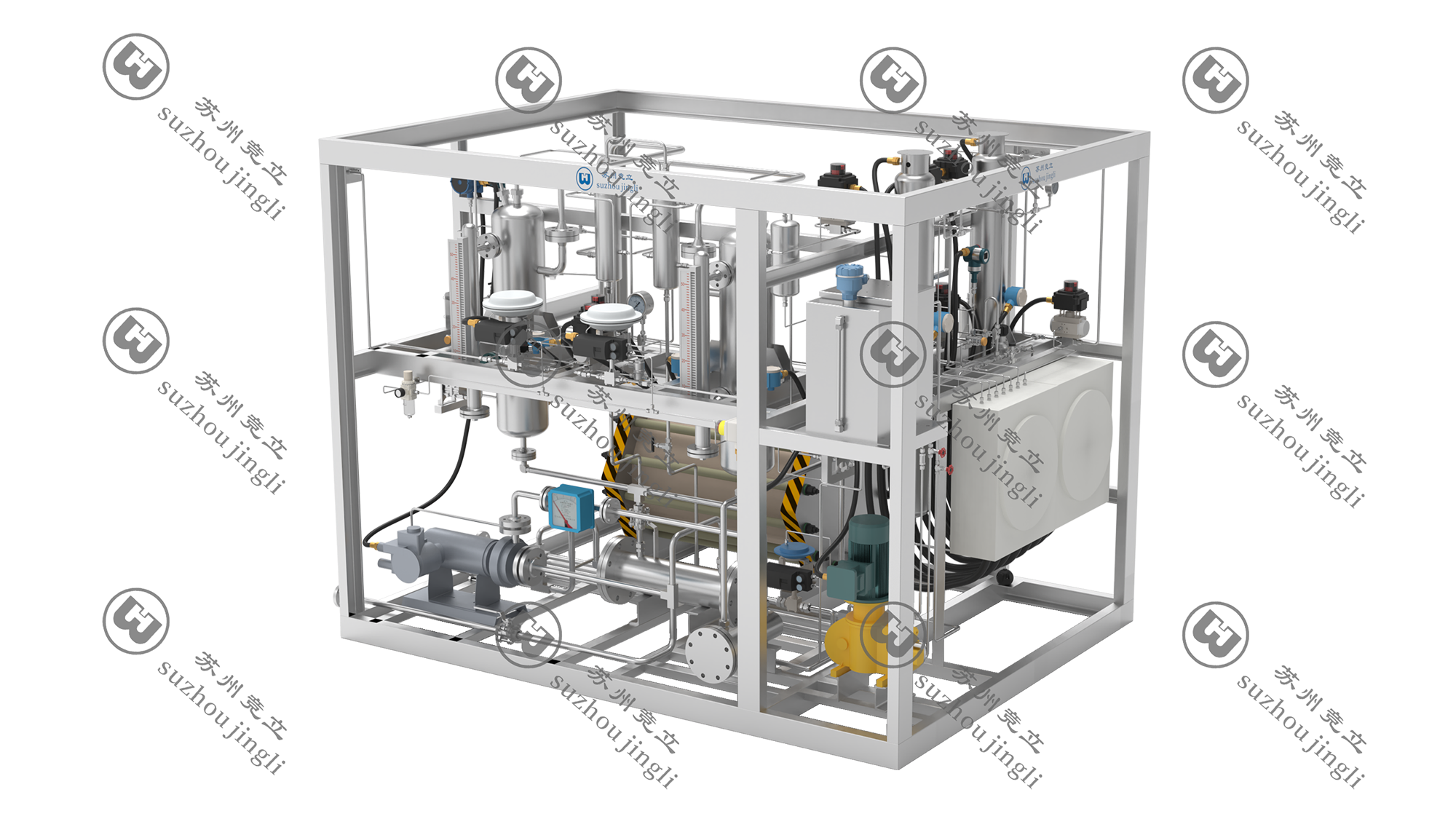

Main equipment composition: electrolyzer, ancillary equipment integrated frame.
Auxiliary equipment components: water tanks, alkali tanks and make-up water pumps and gas decompression distribution framework.
Composition of electric control equipment: rectifier cabinet, power distribution cabinet, etc.
Product Features
| Integrated hydrogen production and drying unit for power plants | ||||
Model Number | Part Name | Lengths(mm) | Widths(mm) | Heights(mm) |
DQ-5/3.2 | Organizing Plan I Frame I | 3000 | 2000 | 2150 |
Organizing Plan II Frame II | 1740 | 1100 | 270(favor) | |
Organizing Plan III Frame III | 1500 | 1100 | 1500 | |
DQ-10/3.2 | Organizing Plan I Frame I | 3000 | 2000 | 2450 |
Organizing Plan II Frame II | 1800 | 1700 | 270(favor) | |
Organizing Plan III Frame III | 1740 | 1100 | 136 | |
| Main technical indexes of hydrogen production and drying integrated device for power plant | ||||||||
Hydrogen Generator Model | Hydrogen Yield m3/h | Oxygen Production m3/h | Operating Pressure MPa | Hydrogen Purity％ | Hydrogen Dew Point ℃ | Dc Power Consumption Kw-h/m3H2 | Tank Overhaul Cycle Time (years) | Control Method |
DQ-5/3.2 | 5 | 2.5 | 3.2 | ≥99.8 | ≤-50 | ≤4.9 | 5-10 | I II III IV |
DQ-10/3.2 | 10 | 5 | 3.2 | ≥99.8 | ≤-50 | ≤4.9 | 5-10 | I II III IV |
※This unit package includes integrated hydrogen production device, hydrogen decompression distribution pan, control cabinet, rectifier cabinet, make-up water pump, raw material water tank, lye tank, analysis instrument.
※I Pneumatic unit combination instrument control; II Motorized control; III PLC control; IV Fieldbus control.
