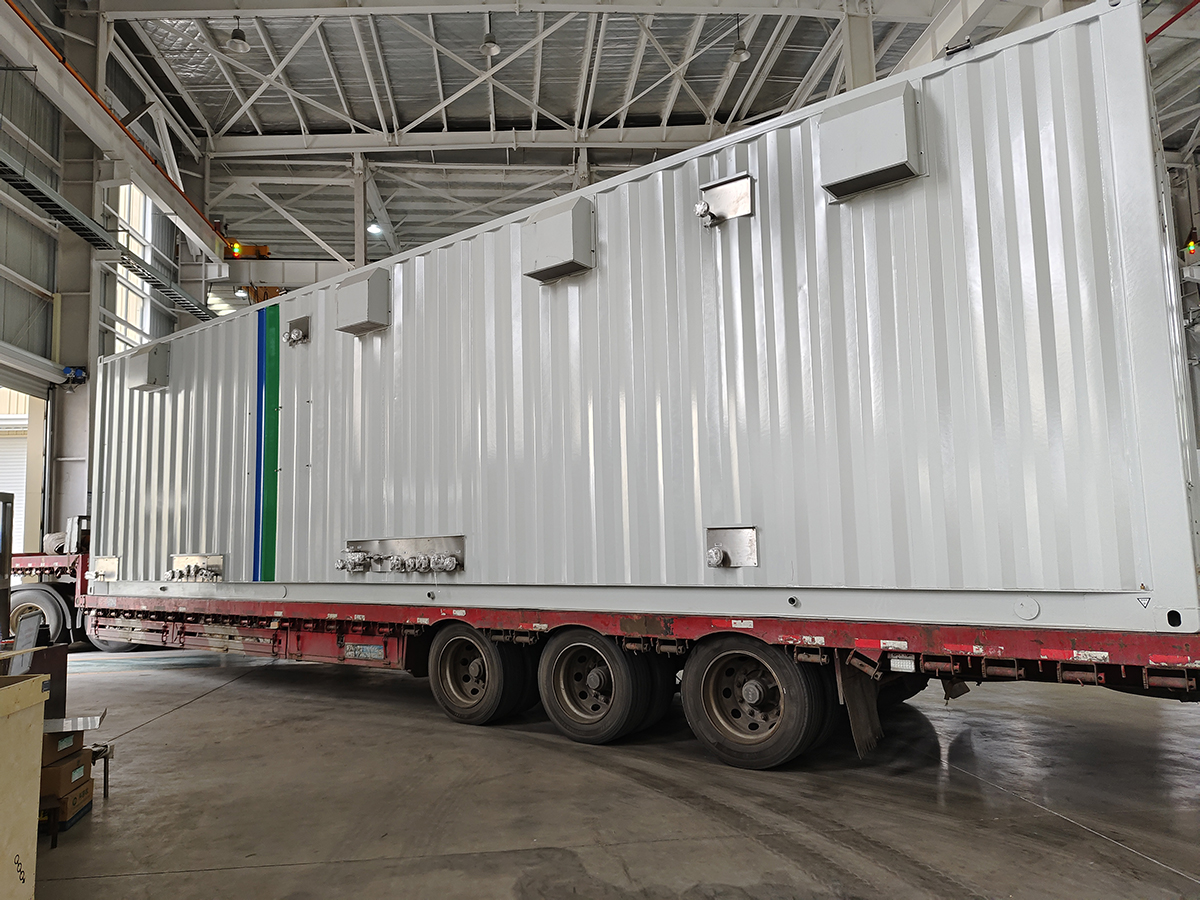

The Mobile Box Hydrogen Plant is a highly integrated, portable hydrogen production solution designed for use where a fast, reliable and mobile supply of hydrogen is required. The Mobile Box Hydrogen Plant is an integrated, portable hydrogen production unit designed to be installed in a container-like box. The unit is modular in design, integrating all the components required for hydrogen production (including electrolyzer, power supply, control system, etc.) in one or several portable boxes.
Product Features
Equipment Parameters
| Parameter/Series | HG | HGB | HGC | HGD | HGE | HGF | HGG |
| Working Pressure | 3.2MPa | 1.6MPa | |||||
| Oxygen Output（m³/h） | 5 | 10 | 20 | 60 | 100 | 200 | 1000 |
| Hydrogen Output（m³/h） | 2.5 | 5 | 10 | 30 | 50 | 100 | 500 |
| Rated Total Current（A） | 500 | 920 | 1670 | 2480 | 4600 | 6600 | 8000 |
| Rated Total Voltage（V） | 50 | 52 | 56 | 114 | 102 | 142 | 640 |
| Lye Circulation Pump（m³/h） | 0.4 | 0.6 | 1 | 3 | 5 | 8 | 25 |
| Cooling Water Consumption（t/h） | 1 | 2 | 4 | 12 | 16 | 28 | 80 |
| Dilute Lye Consumption（Kg) | 30 | 60 | 180 | 230 | 460 | 1000 | 3200 |
| Lye Consumption For Concentrated Lye（Kg） | 60 | 120 | 400 | 500 | 1000 | 2200 | 6400 |
| Transformer Capacity（KVA） | 45 | 80 | 200 | 500 | 800 | 1600 | 6300 |
